Output size30-400 mesh
-
Capacity0.5-100 t/h
-
Power18.5kw-1000kw
Applicable Materials
Wet ball mill used to grind kinds of materials such as copper ore, gold ore, magnetite ore, quartz, lead zinc ore and other materials into fine powder 20-75micrometer.
Product Features
Simple structure, smooth operation
There is no inertia impact, the equipment runs smoothly, and reduces the downtime and maintenance time of the mill, improving the efficiency.Parts wear resistant, long life
Using high quality plate, lining can be replaced, rotary gear using casting gear hobbing processing, the cylinder body is inlaid with wear-resistant lining plate, has good wear resistance.Closed system is adopted to reduce dust
Ball mill and classifier form closed system, negative pressure conveying, small dust, green environment protection.Reliable operation, energy saving effect is remarkable
The bearing body is lubricated by grease, which greatly reduces friction resistance, and the fuel consumption is extremely low and the operation is more convenient.Technical Parameter
Model | Shell Rotation Speed (r/min) | Ball Load (t) | Feeding Size(mm) | Discharging Size(mm) | Capacity (t/h) | Power (KW) | Weight (T) |
900×1800 | 38 | 1.5 | ≤15 | 0.075 -0.89 | 0.65 -2 | 18.5 | 3.6 |
900×2100 | 38 | 1.3-1.4 | ≤20 | 0.075 -0.83 | 0.7-3.5 | 18.5 | 3.9 |
900×3000 | 38 | 2.7 | ≤20 | 0.075 -0.89 | 1.1-3.5 | 22 | 4.5 |
1200×2400 | 32 | 3.8 | ≤25 | 0.0745-0.6 | 1.5-4.8 | 30 | 11.5 |
1200×2800 | 32 | 3.3-3.5 | ≤25 | 0.0745-0.6 | 2-6 | 30 | 12.8 |
1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 13 |
1200×4500 | 32 | 7 | ≤25 | 0.074 -0.4 | 1.6-5.8 | 45 | 13.8 |
1500×3000 | 27 | 8 | ≤25 | 0.074 -0.4 | 2-5 | 75 | 17 |
1500 ×3500 | 27 | 6.75-6.4 | ≤25 | 0.075 -0.4 | 3-7 | 75 | 17.5 |
1500×4500 | 27 | 14 | ≤25 | 0.074 -0.4 | 3.5-12 | 110 | 21 |
1500×5700 | 27 | 15 | ≤25 | 0.074 -0.4 | 3.5-8 | 115 | 24.7 |
1830×3000 | 24 | 18 | ≤25 | 0.074 -0.4 | 4-10 | 130 | 28 |
1800×3600 | 24 | 10.6-11.35 | ≤25 | 0.075 -0.4 | 5-22 | 130 | 30 |
1830*4500 | 25.4 | 15 | <=25 | 0.074-0.4 | 4.5-12 | 155 | 32 |
1830×6400 | 24.1 | 21 | ≤25 | 0.074~0.4 | 6.5-15 | 210 | 34 |
1830×7000 | 24 | 25 | ≤25 | 0.074 -0.4 | 7.5-17 | 210 | 36 |
2100×3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 39 |
2100×3600 | 22 | 14-15.2 | ≤25 | 0.075 -0.4 | 15-36 | 370 | 42 |
2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 | 43.8 |
2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 | 56.6 |
2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 | 45.5 |
2200×5500 | 21 | 30 | ≤25 | 0.074 -0.4 | 10-20 | 210 | 48.5 |
2200×6500 | 21 | 31 | ≤25 | 0.074 -0.4 | 14-26 | 380 | 52.8 |
2200*7000 | 21.7 | 35 | <=25 | 0.074-0.4 | 15-28 | 380 | 54 |
2200×7500 | 21 | 33 | ≤25 | 0.074 -0.4 | 16-29 | 380 | 56 |
2400×3000 | 20.6 | 15.5-16.6 | ≤25 | 0.075 -0.4 | 22-24 | 245 | 59 |
2400×4500 | 21 | 30 | ≤25 | 0.074 -0.4 | 8.5-60 | 380 | 65 |
2700×3600 | 20.6 | 39 | ≤25 | 0.074 -0.4 | 12-70 | 400 | 91.3 |
2700×4000 | 20.7 | 40 | ≤25 | 0.074 -0.4 | 12-80 | 400 | 94 |
2700×4500 | 20.7 | 48 | ≤25 | 0.074 -0.4 | 12-90 | 430 | 102 |
3200×4500 | 18 | 65 | ≤25 | 0.075-0.4 | 30-90 | 800 | 137 |
Working Principle

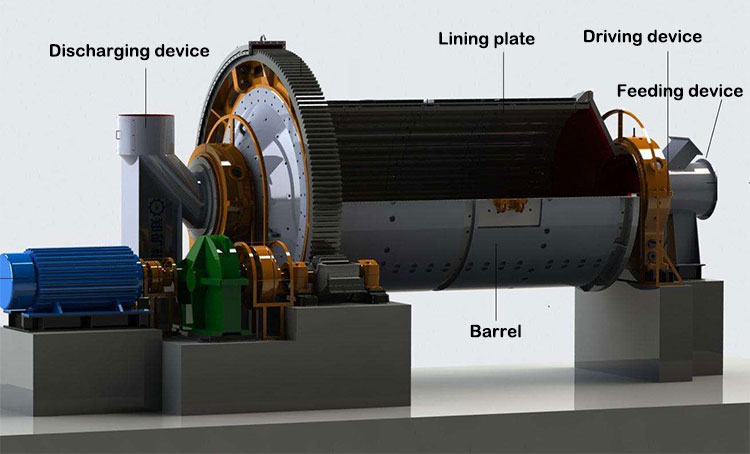

1.Wet ball mill is drived by the outer gear. The materials are transferred to the grinding chamber through the guide screw uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber.
2.The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
