Applicable materialslimestone,gypsum,dolomite,marble,barite,calcite,clay,bentonite,kaolin,silica sand,calcium carbonate,phosphate ore,feldspar,fluorite,petroleum coke,talc,mica etc
-
Capacity1-40t/h
-
Output size80-600mesh
Product Introduction

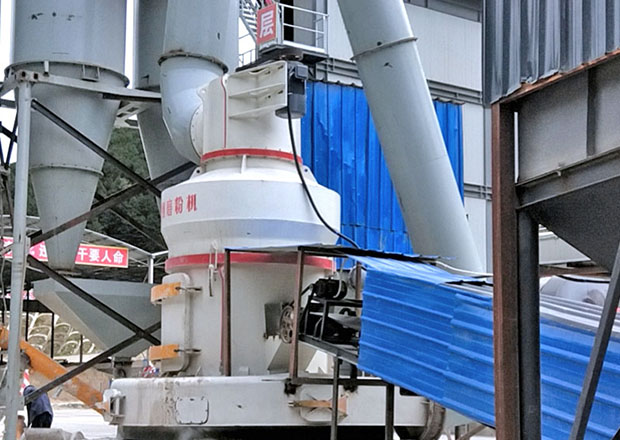

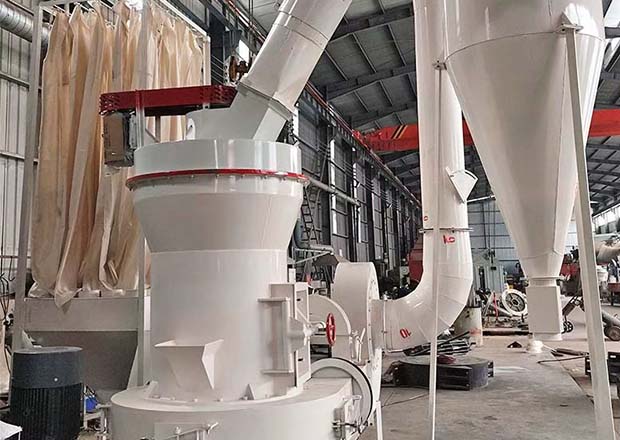

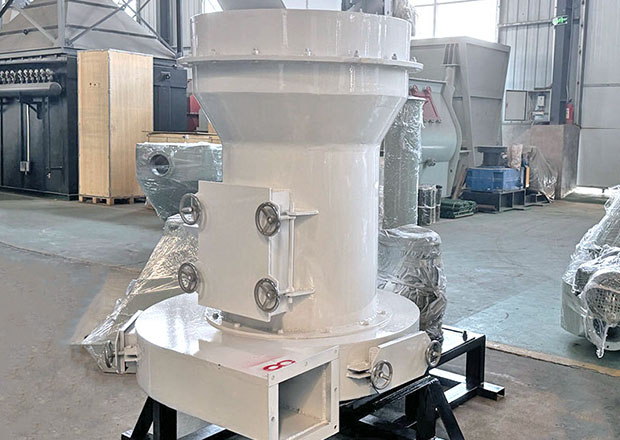

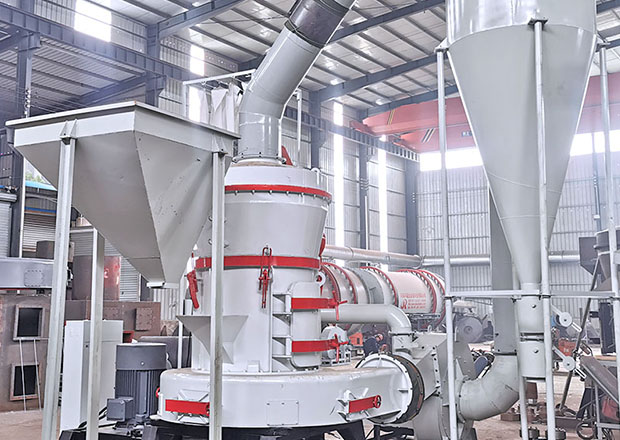

Raymond Mill | Raymond Roller Mill — High Efficiency, Low Energy Consumption, Uniform Particle Size — The Ideal Choice for Non-Metallic Mineral Powder Processing
Raymond mill is a widely used grinding equipment for non-metallic mineral powder processing. It is suitable for materials with Mohs hardness ≤7 and moisture ≤6%, such as limestone, calcite, marble, barite, gypsum, talc, kaolin, bentonite, dolomite, phosphate rock, manganese ore, feldspar, and other non-flammable and non-explosive materials. The finished product fineness can be freely adjusted within 80-400 mesh, and some materials can be ground to 600 mesh or even finer.
Compared with traditional ball mills, Raymond mill offers significant advantages: compact structure, small footprint, low power consumption, high one-pass powder yield, uniform particle size, and dust-free operation. The core grinding principle utilizes grinding rollers that tightly press against the grinding ring under centrifugal force. Material is crushed and ground between the rollers and the ring. An air classifier (separator) controls the final fineness, and coarse powder is automatically returned to the grinding chamber for regrinding, forming a closed circuit that greatly improves grinding efficiency.
Our Raymond mill features high-manganese alloy rollers/rings, wear-resistant shovels, high-efficiency fans, and pulse baghouse filters to ensure long-term stable operation while meeting strict environmental standards at home and abroad. Our products have been exported to more than 50 countries and regions, including the US, Russia, India, Vietnam, Indonesia, Egypt, and Brazil, and are widely used in building materials, chemicals, metallurgy, mining, power, and environmental protection industries.
The Raymond mill is widely used for the following materials and industries:
| Material Type | Typical Materials | Fineness | Industry Application |
|---|---|---|---|
| Carbonates | Limestone, calcite, marble, dolomite | 100-400 mesh | Building materials, paints, plastics, feed additives |
| Sulfates | Barite, gypsum, anhydrite | 200-400 mesh | Oil drilling weighting agent, building materials, molds |
| Silicates | Talc, kaolin, bentonite, mica | 200-600 mesh | Paper, ceramics, rubber, paints, cosmetics |
| Phosphates | Phosphate rock | 100-200 mesh | Phosphate fertilizer production |
| Oxides | Manganese ore, iron ore, chrome ore | 100-200 mesh | Metallurgy, mineral processing |
| Other Non-Metallic | Activated carbon, petroleum coke, silicon carbide | 100-400 mesh | Chemicals, adsorbents, refractories |
Product Features
High Efficiency & Energy Saving
Raymond mill saves 30%-40% energy compared to ball mills—only 25-35 kWh per ton, greatly reducing operating costsUniform & Adjustable Fineness
Product fineness adjustable from 80-400 mesh (up to 600 mesh for some materials), narrow particle size distribution, no over-grindingHigh One-Pass Yield
Closed-circuit system automatically returns coarse powder for regrinding, resulting in high yield and large capacityCompact Structure, Small Footprint, Turnkey Solution
Vertical layout occupies only 1/3-1/2 of a ball mill's floor space, lowering civil construction costs, Complete process solution from crushing, grinding, classification, collection to packagingEnvironmentally Friendly, Dust-Free
Negative pressure sealed operation throughout, equipped with pulse baghouse filter, dust emission <20mg/Nm³Wear-Resistant & Durable
Grinding rollers and rings made of high-manganese alloy or wear-resistant ceramic, service life up to 8,000-12,000 hoursStable Operation, Easy Maintenance
Transmission system uses reducer + belt pulley, simple structure, easy replacement of wear partsStrong Adaptability & Optional Automatic Control
Can process over 80 non-metallic minerals with Mohs hardness ≤7 and moisture ≤6%, Optional PLC automatic control system for one-touch start/stop and fault alarms
Working Principle
The working principle of the Raymond mill is based on centrifugal rolling and air classification. The whole process consists of the following steps:
1. Feeding
Material is crushed by a jaw crusher to ≤30mm, then lifted by a bucket elevator into a raw material silo, and uniformly fed into the Raymond mill grinding chamber by an electromagnetic vibrating feeder.
2. Grinding
When the main unit is working, grinding rollers tightly press against the grinding ring under centrifugal force. Material is scooped up by a shovel blade and thrown between the rollers and the ring, where it is crushed and ground. The ground powder rises with the airflow from the fan to the classifier.
3. Classification
The classifier controls the final fineness by adjusting the speed of the classifying rotor. Powder that meets the fineness requirement passes through the classifier to the cyclone collector or dust collector; coarse powder is rejected and falls back into the grinding chamber for regrinding, forming a closed circuit.
4. Collection & Dust Removal
After preliminary collection by the cyclone collector, the dust-laden gas enters a pulse baghouse filter for further purification, achieving final dust emission below 20mg/Nm³. The collected finished powder is discharged through a discharge valve and conveyed by a screw conveyor to the finished product silo or packaging machine.
5. System Features
The entire system operates under negative pressure, preventing dust leakage.
An air volume control valve between the fan and the main unit allows adjustment based on material characteristics and fineness requirements.
Grinding rollers and rings are made of high-wear-resistant alloy materials for long service life.
Technical Parameter
| Model | KL500 | KL650 | KL780 | KL980 | KL1100 | KL1450 | KL1760 | KL1950 | KL2100 |
| Handling Ability (t/h) | 0.5-2 | 0.5-2.5 | 1-3 | 1.5-4 | 2-6 | 6-10 | 8-20 | 15-30 | 20-40 |
| Main Motor Power(kw) | 7.5 | 15 | 18.5 | 30 | 45 | 90 | 132 | 185 | 220 |
| Fan power(kw) | 5.5 | 11 | 15 | 22 | 37 | 90 | 132 | 185 | 220 |
| Analyst power(kw) | 1.1 | 1.1 | 2.2 | 2.2 | 5.5 | 7.5 | 22 | 37 | 45 |
| Rotate Speed(r/m) | 120 | 120 | 120 | 120 | 120 | 90 | 90 | 90 | 90 |
| Diameter of Grinding Ring(mm) | 500 | 650 | 780 | 980 | 1100 | 1450 | 1760 | 1950 | 2100 |
| Diameter of Grinding Roll(mm) | 150 | 180 | 260 | 300 | 320 | 400 | 450 | 570 | 630 |
| Maximum Feed(mm) | 15 | 15 | 15 | 20 | 25 | 30 | 30 | 40 | 40 |
| Finished Particle Size(mm/mesh) |
1.6 ------ 0.045mm （16-325 mesh） |
1.6------0.023mm （16-600mesh） |
|||||||
| Weight(t) | 1.8 | 2.8 | 3.8 | 6.5 | 14.5 | 26 | 48 | 65 | 85 |
Why Choose Us
Professional Manufacturer: Over 20 years of experience in Raymond mill R&D and manufacturing, ISO9001 and CE certified.
Superior Performance: Optimized grinding chamber and airflow system increase output by 15%-30% and reduce energy consumption by 10%-20% compared to traditional Raymond mills.
Global Track Record: Over 1000 Raymond mills supplied to customers in more than 50 countries, widely used in non-metallic mineral processing.
Comprehensive After-Sales: Overseas engineer installation and commissioning, operation training, spare parts supply, 48-hour response mechanism.
Customized Design: Tailored selection and process design based on material characteristics (hardness, moisture, fineness).
High Cost-Performance: Competitive pricing without compromising quality, helping customers achieve fast ROI.
Improve your powder processing efficiency and reduce production costs! Contact us today for professional selection advice and a customized solution.
