Cement Ball Mill
The cement mill is the key equipment for re-grinding cement clinker after pre-grinding by system ingredients. Cement grinding is one of the important cement equipment.
  • Output size
    30-400 mesh
  • Capacity
    0.5-100 t/h
  • Power
    18.5kw-1000kw

Applicable Materials

Grinding different types of cement clinker,such as Portland cement,Portland slag cement, Portland pozzolan cement, Portland fly ash cement, Special cement, Characteristic cement, General purpose cement, Slag cement, Oil well cement,White Portland cement,Pozzolanic cement,Masonry cement,Aluminate cement,Fast hardening Portland cement,Sulfate resistant Portland cement,and Portland expansion cement can be used for the dry grinding for all kinds of cement clinker and raw materials.

Product Features

Simple structure, smooth operation

There is no inertia impact, the equipment runs smoothly, and reduces the downtime and maintenance time of the mill, improving the efficiency.

Parts wear resistant, long life

Using high quality plate, lining can be replaced, rotary gear using casting gear hobbing processing, the cylinder body is inlaid with wear-resistant lining plate, has good wear resistance.

Closed system is adopted to reduce dust

Ball mill and classifier form closed system, negative pressure conveying, small dust, green environment protection.

Reliable operation, energy saving effect is remarkable

The bearing body is lubricated by grease, which greatly reduces friction resistance, and the fuel consumption is extremely low and the operation is more convenient.

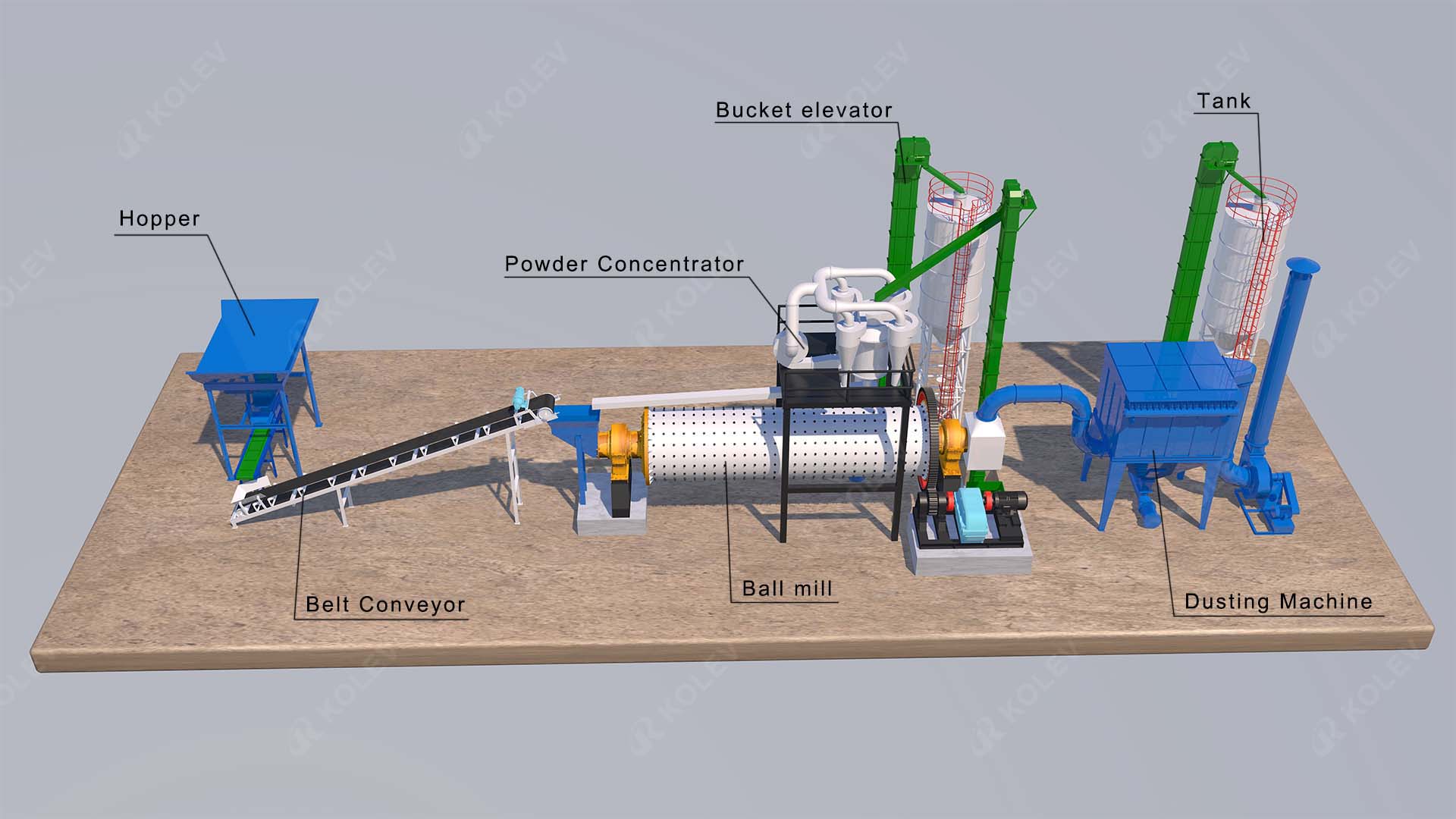

Process Flow Chart

1.The materials that meet the grinding particle size are unloaded into the large silo by the loader. A weighing and metering feeding device (belt metering scale) is arranged under the silo. The device is controlled by a microcomputer and automatically adjusts the feeding amount according to the capacity input parameters.
2.In order to ensure that the mill meets the production standards and reduces the consumption of grinding bodies, a permanent magnetic iron remover is suspended on the feeding belt conveyor to remove metal (physical iron) impurities in the raw materials.
3.This set of grinding scheme adopts a closed-flow (circular flow grinding) grinding process, that is, the mixed powder discharged from the ball mill first enters the powder selection machine for air selection, the fine ash directly enters the finished product warehouse, and the coarse ash returns to the ball mill for secondary grinding, thus forming a closed-loop grinding system.
4.Although the investment in the circle flow grinding system is larger, the fineness (particle size ratio) of the product is uniform, the quality is stable, and the output is much higher than that of the same model ball mill.

Cement Ball Mill

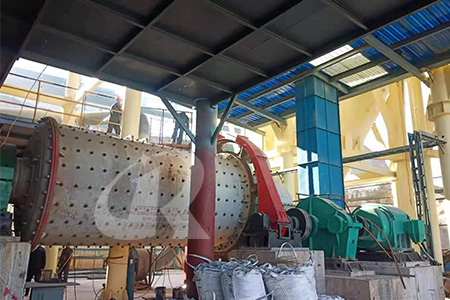

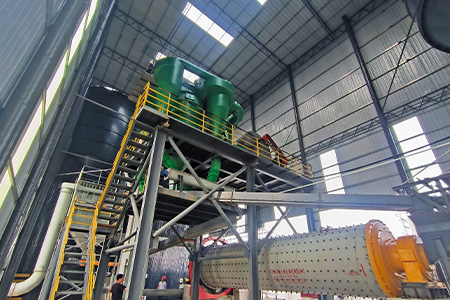

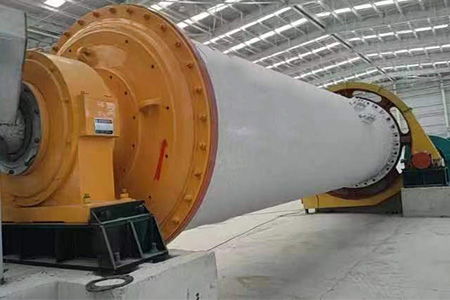

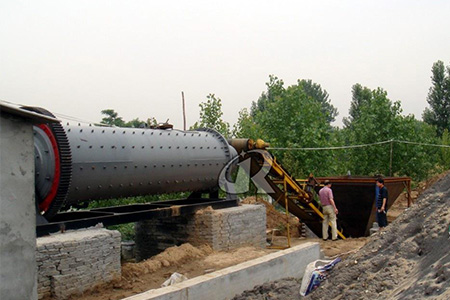

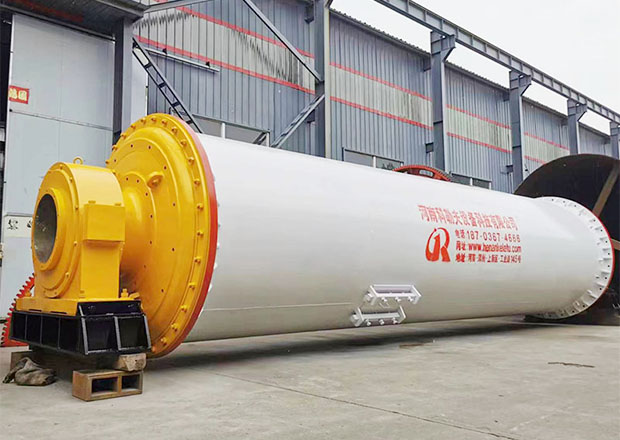

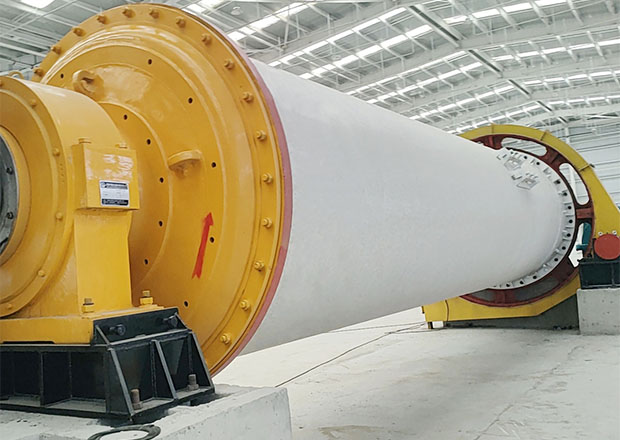

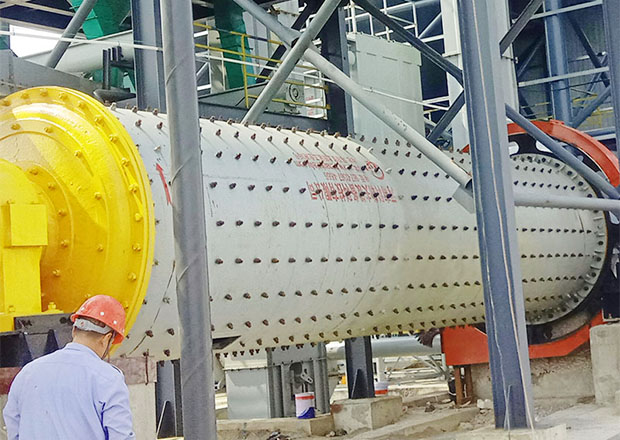

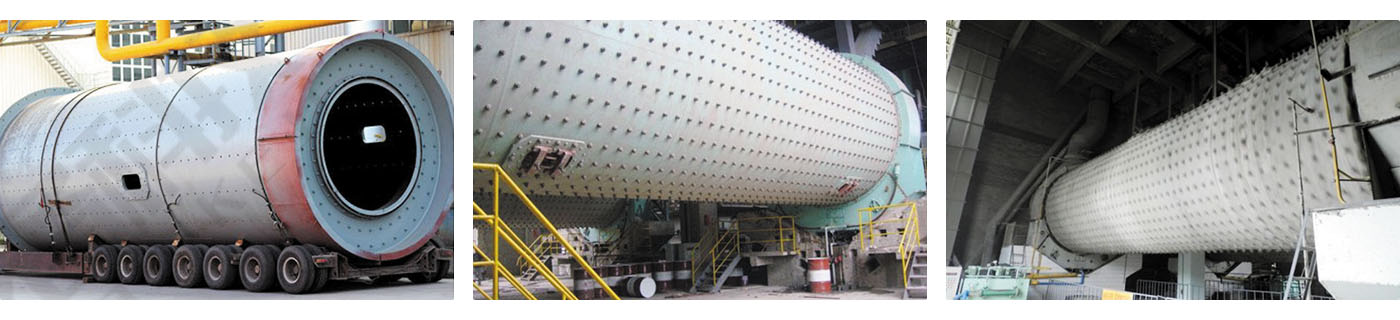

Cement Ball Mill image 1 Cement Ball Mill image 2 Cement Ball Mill image 3 Cement Ball Mill image 4

Technical Parameter

Specification(m)D×L Rotary speed(r/min) Feeding sie(mm) Capacity Ball loading Main motor Power(kw) Motor speed(r.p.m) Main reducer Reducing ratio Weight
Φ2.2×11 22.2 ≤25 15~17 50 JR1512-8 570 740 ZD80 5 83
Φ2.4×8 20.91 ≤25 14~18 39.5-42 JR1512-8 570 740 ZD80 5 76.4
Φ2.4×9 20.91 ≤25 23~25 C 50 JR1512-8 570 740 ZD80 5 81
Φ2.4×10 20.91 ≤25 O 16~18 50 TR1512-8 630 740 ZD80 5 92.4
Φ2.4×11 21 ≤25 O 17~19
C 20~22
60~62 YR710-8/1180 710 740 JDX630 5.6 105
Φ2.4×12 21 ≤25 O 18~20
C 22~24
63~65 YR800-8/1180 800 740 MBY710 6.3 110
Φ2.4×13 21 ≤25 O 21~22
C 24~26
66~68 YR800-8/1180 800 740 MBY710 6.3 117
Φ2.6×10 20.6 ≤25 21~24 64 YR800-8/1180 800 740 JDX710 6.3 133
Φ2.6×11 20.6 ≤25 21~28 69 YR800-8/1180 800 740 JDX710 6.3 140
Φ2.6×13 20.6 ≤25 28~31 80 YR1000-8/1180 1000 740 JDX800 6.3 151
Φ3.0×9 19.3 ≤25 35~40(C) 80~83 YR1000-8/1180 1000 740 MBY800 7.1 137
Φ3×11 18.92 ≤25 44~47(C) 95~100 YR1250-8/1430 1250 740 JDX900 7.1 159
Φ3×12 18.92 ≤25 48~52(C) 103 YR1250-8/1430 1250 740 JDX900 7.1 164
Φ3×13 18.92 ≤25 39~45(C) 110~116 YR1400-8/1430 1400 740 JDX900 7.1 183
Φ3.2×11 18.3 ≤25 45~48(C) 110~112 YR1400-8/1430 1400 740 JDX900 7.1 195.5
Φ3.2×13 18.7 ≤25 45~50(O) 125 YR1600-8/1430 1600 740 JDX1000 7.15 213
Φ3.4×11 18 ≤25 45~55(C) 115 YR1600-8/1430 1600 740 JDX1000 7.15 201
Φ3.5×13
Central drive
17 ≤25 50~55 150 YR2000-8/1730 2000 740 JS130-A-F1   223
Φ3.5×13
Edge drive
17.5 ≤25 50~60 150 YR2000-8/1730 2000 740 JDX1000 6.3 240.5
Φ3.8×13
Bearing
16.3 ≤25 65~70 185 YR2500-8/1730 2500 740 JS130-C-F1   240
Φ3.8×13
Sliding shoe
16.3 ≤25 65~70 185 YR2500-8/1730 2500 740 JS130-C-F1   220
Φ4×13 16.3 ≤25 78~80 191 YRKK900 2800 745 JS140-A   220
Φ4.2×11
Bearing
15.6 ≤25 120~140 190 YR2800-8/1730 2800 740 JS140-A-F1D   245
Φ4.2×13
Bearing
15.6 ≤25 140~155 225 YRKK1000-8 3350 740 JS150-A   260
Φ4.2×13
Central shoe
15.6 ≤25 140~155 225 YRKK1000-8 3550 740 JS150-A   280
Φ4.2×13
Sliding shoe
15.6 ≤25 140~155 225 YRKK1000-8 3550 740 JS150-B   260
Φ4.6×13.5
Welding shoe
14.5 ≤25 140 280 YRKK1000-6 4500 995     365
Φ4.6×14 14.5 ≤25 145 285 YR1000-6 4500 995     372
Φ5.0×15 14 ≤25 160~165 350 YRKK1000-8 6000 740     420
