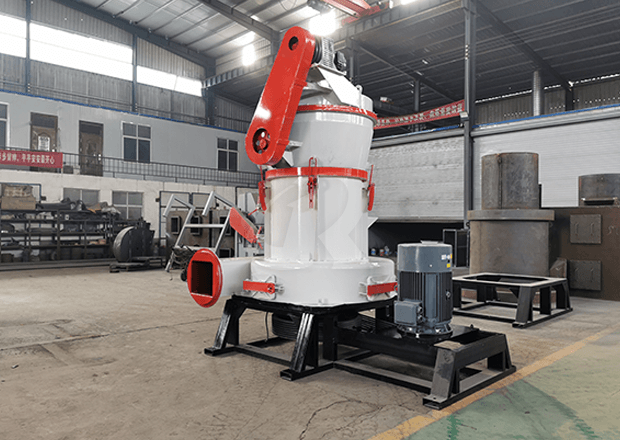

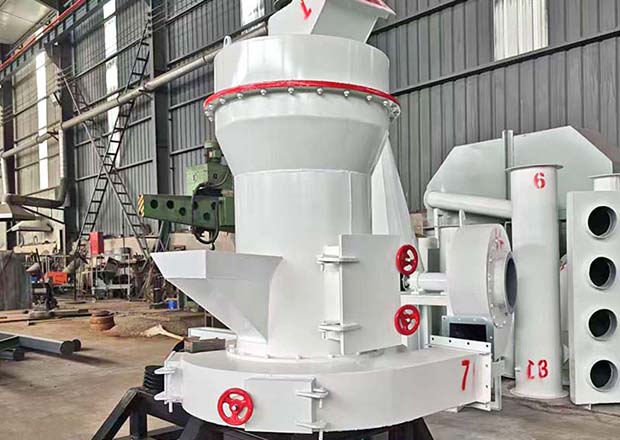

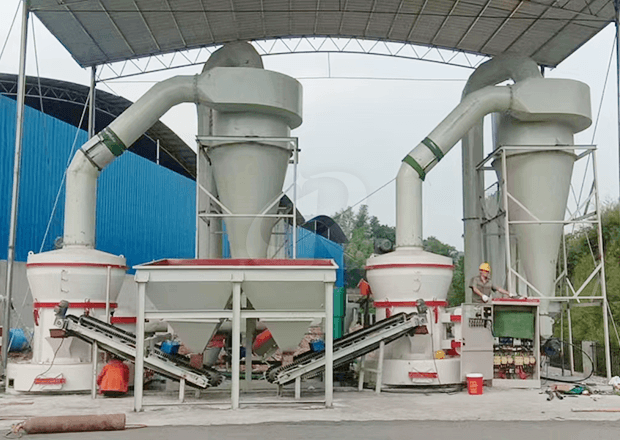

Raymond Roller Mill
Product Introduction
Raymond Roller Mill | High Efficiency & Energy Saving, Adjustable Fineness- The Preferred Equipment for Non-Metallic Mineral Powder Processing
Raymond Roller Mill is a widely used grinding equipment for non-metallic mineral powder processing. It is suitable for materials with Mohs hardness ≤7 and moisture ≤6%, including limestone, calcite, marble, barite, gypsum, talc, kaolin, bentonite, dolomite, phosphate rock, manganese ore, feldspar, and other non-flammable and non-explosive materials. The finished product fineness can be freely adjusted within 80-400 mesh, and some materials can be ground to 600 mesh or even finer.
Compared with traditional ball mills, the Raymond Roller Mill offers significant advantages: compact structure, small footprint, low power consumption, high one-pass powder yield, uniform particle size, and dust-free operation. Its core grinding principle is that the grinding roller tightly presses against the grinding ring under centrifugal force, and the material is crushed and ground between them. An air classifier controls the final fineness, and coarse powder is automatically returned to the grinding chamber for regrinding, forming a closed circuit that greatly improves grinding efficiency.
Our Raymond Roller Mill features high-manganese alloy rollers/rings, wear-resistant shovels, high-efficiency fans, and pulse baghouse filters to ensure long-term stable operation while meeting strict environmental standards at home and abroad. Our products have been exported to more than 50 countries and regions, including the US, Russia, India, Vietnam, Indonesia, Egypt, and Brazil, and are widely used in building materials, chemicals, metallurgy, mining, power, and environmental protection industries.
Raymond Roller Mill is widely used for the following materials and industries:
| Material Type | Typical Materials | Fineness | Industry Application |
|---|---|---|---|
| Carbonates | Limestone, calcite, marble, dolomite | 100-400 mesh | Building materials, paints, plastics, feed additives |
| Sulfates | Barite, gypsum, anhydrite | 200-400 mesh | Oil drilling weighting agent, building materials, molds |
| Silicates | Talc, kaolin, bentonite, mica | 200-600 mesh | Paper, ceramics, rubber, paints, cosmetics |
| Phosphates | Phosphate rock | 100-200 mesh | Phosphate fertilizer production |
| Oxides | Manganese ore, iron ore, chrome ore | 100-200 mesh | Metallurgy, mineral processing |
| Other Non-Metallic | Activated carbon, petroleum coke, silicon carbide | 100-400 mesh | Chemicals, adsorbents, refractories |
Product Features
High Efficiency & Energy Saving
Raymond mill saves 30%-40% energy compared to ball mills—only 20-30 kWh per ton (depending on material), greatly reducing operating costs
Uniform & Adjustable Fineness
Product fineness adjustable from 80-400 mesh (up to 600 mesh for some materials), narrow particle size distribution, no over-grinding
High One-Pass Yield & Optional Automatic Control
Closed-circuit system automatically returns coarse powder for regrinding, resulting in high yield and large capacity, Optional PLC automatic control system for one-touch start/stop and fault alarms
Compact Structure, Small Footprint
Vertical layout occupies only 1/3-1/2 of a ball mill's floor space, lowering civil construction costs
Environmentally Friendly, Dust-Free
Negative pressure sealed operation throughout, equipped with pulse baghouse filter, dust emission <20mg/Nm³
Wear-Resistant & Durable
Grinding rollers and rings made of high-manganese alloy, service life up to 8,000-12,000 hours; optional ceramic wear parts
Stable Operation, Easy Maintenance, Turnkey Solution
Transmission system uses reducer + belt pulley, simple structure, easy replacement of wear parts, Complete process solution from crushing, grinding, classification, collection to packaging
Strong Adaptability
Can process over 80 non-metallic minerals with Mohs hardness ≤7 and moisture ≤6%
Working Principle
The working principle of the Raymond Roller Mill is based on centrifugal rolling and air classification. The whole process consists of the following steps:
1. Feeding
Material is crushed by a jaw crusher to ≤30mm, then lifted by a bucket elevator into a raw material silo, and uniformly fed into the Raymond mill grinding chamber by an electromagnetic vibrating feeder.
2. Grinding
When the main unit is working, the grinding rollers tightly press against the grinding ring under centrifugal force. The material is scooped up by a shovel blade and thrown between the rollers and the ring, where it is crushed and ground into fine powder.
3. Classification
The ground powder rises with the airflow from the fan to the classifier. The classifier controls the final fineness by adjusting the speed of the classifying rotor. Powder that meets the fineness requirement passes through the classifier to the cyclone collector or dust collector; coarse powder is rejected and falls back into the grinding chamber for regrinding, forming a closed circuit.
4. Collection & Dust Removal

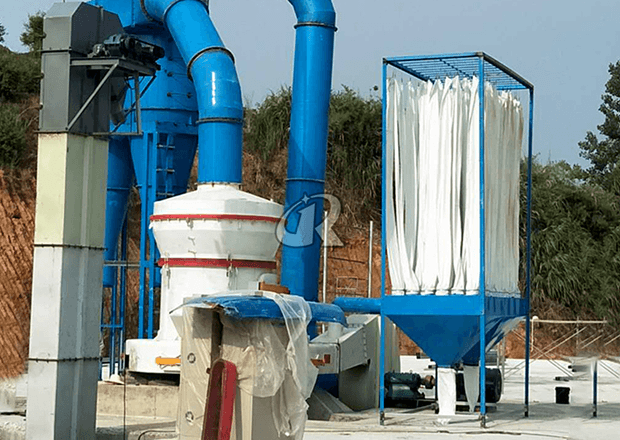

After preliminary collection by the cyclone collector, the dust-laden gas enters a pulse baghouse filter for further purification, achieving final dust emission below 20mg/Nm³. The collected finished powder is discharged through a discharge valve and conveyed by a screw conveyor to the finished product silo or packaging machine.
5. System Features
The entire system operates under negative pressure, preventing dust leakage.
An air volume control valve between the fan and the main unit allows adjustment based on material characteristics and fineness requirements.
Grinding rollers and rings are made of high-wear-resistant alloy materials for long service life.
Technical Parameter
| Model | Roller Qty | Max Feed (mm) | Output (t/h) | Product Fineness | Main Motor Power (kW) | Overall Power (kW) |
|---|---|---|---|---|---|---|
| 3R1410 | 3 | ≤15 | 0.5-1.5 | 80-400 mesh | 11 | 20 |
| 3R2115 | 3 | ≤20 | 1-2.5 | 80-400 mesh | 22 | 35 |
| 3R2615 | 3 | ≤20 | 1.5-3 | 80-400 mesh | 30 | 45 |
| 3R2715 | 3 | ≤20 | 1.5-3.5 | 80-400 mesh | 37 | 52 |
| 4R3216 | 4 | ≤25 | 2-5 | 80-400 mesh | 55 | 85 |
| 4R3220 | 4 | ≤25 | 3-7 | 80-400 mesh | 75 | 110 |
| 5R4119 | 5 | ≤30 | 4-10 | 80-400 mesh | 110 | 165 |
| 5R4121 | 5 | ≤30 | 5-15 | 80-400 mesh | 132 | 195 |
| 6R5525 | 6 | ≤35 | 8-20 | 80-400 mesh | 200 | 280 |
Why Choose Us
Professional Manufacturer: Over 20 years of experience in Raymond mill R&D and manufacturing, ISO9001 and CE certified.
Superior Performance: Optimized grinding chamber and airflow system increase output by 15%-30% and reduce energy consumption by 10%-20% compared to traditional Raymond mills.
Global Track Record: Over 2,000 Raymond mills supplied to customers in more than 50 countries, widely used in non-metallic mineral processing.
Comprehensive After-Sales: Overseas engineer installation and commissioning, operation training, spare parts supply, 48-hour response mechanism.
Customized Design: Tailored selection and process design based on material characteristics (hardness, moisture, fineness).
High Cost-Performance: Competitive pricing without compromising quality, helping customers achieve fast ROI.
Improve your powder processing efficiency and reduce production costs! Contact us today for professional selection advice and a customized solution.
Get Your Customized Solution:
Request a Quote → Tell us your capacity requirement, material type, and target fineness, and we will respond within 24 hoursSchedule a Technical Discussion → Speak one-on-one with our grinding engineer
