Output size30-400 mesh
-
Capacity0.5-100 t/h
-
Power18.5kw-1000kw
Product Features
Simple structure, smooth operation
There is no inertia impact, the equipment runs smoothly, and reduces the downtime and maintenance time of the mill, improving the efficiency.Parts wear resistant, long life
Using high quality plate, lining can be replaced, rotary gear using casting gear hobbing processing, the cylinder body is inlaid with wear-resistant lining plate, has good wear resistance.Closed system is adopted to reduce dust
Ball mill and classifier form closed system, negative pressure conveying, small dust, green environment protection.Reliable operation, energy saving effect is remarkable
The bearing body is lubricated by grease, which greatly reduces friction resistance, and the fuel consumption is extremely low and the operation is more convenient.Applicable Material
Working Principle

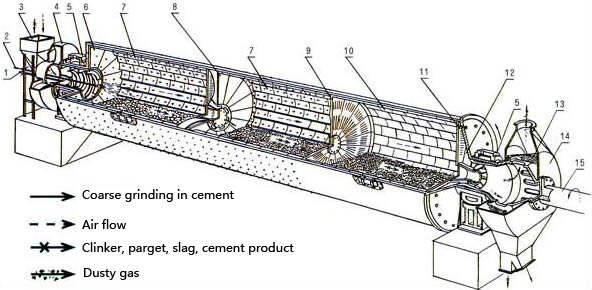

1.Raw material ball mill is horizontal cylindrical rotation device, driving by brim gearwheel. There are two chambers and grid.
2.Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls with various kinds. The shell rotates which generates eccentricity, this force brings balls to a certain height and then balls drop down by gravity, which will impact and grind the material.
3.After the primary grinding in the first chamber, material goes into the second chamber through segregate screen. In the second chamber, there are fiat liners and steel balls, after the secondary grinding, materials are discharged through the discharge screen.
Technical Parameter
| Specification(m)D×L | Rotary speed(r/min) | Feeding sie(mm) | Capacity | Ball loading | Main motor | Power(kw) | Motor speed(r.p.m) | Main reducer | Reducing ratio | Weight |
| Φ2.2×11 | 22.2 | ≤25 | 15～17 | 50 | JR1512-8 | 570 | 740 | ZD80 | 5 | 83 |
| Φ2.4×8 | 20.91 | ≤25 | 14～18 | 39.5-42 | JR1512-8 | 570 | 740 | ZD80 | 5 | 76.4 |
| Φ2.4×9 | 20.91 | ≤25 | 23~25 C | 50 | JR1512-8 | 570 | 740 | ZD80 | 5 | 81 |
| Φ2.4×10 | 20.91 | ≤25 | O 16~18 | 50 | TR1512-8 | 630 | 740 | ZD80 | 5 | 92.4 |
| Φ2.4×11 | 21 | ≤25 | O 17~19 C 20~22 | 60~62 | YR710-8/1180 | 710 | 740 | JDX630 | 5.6 | 105 |
| Φ2.4×12 | 21 | ≤25 | O 18~20 C 22~24 | 63~65 | YR800-8/1180 | 800 | 740 | MBY710 | 6.3 | 110 |
| Φ2.4×13 | 21 | ≤25 | O 21~22 C 24~26 | 66~68 | YR800-8/1180 | 800 | 740 | MBY710 | 6.3 | 117 |
| Φ2.6×10 | 20.6 | ≤25 | 21~24 | 64 | YR800-8/1180 | 800 | 740 | JDX710 | 6.3 | 133 |
| Φ2.6×11 | 20.6 | ≤25 | 21~28 | 69 | YR800-8/1180 | 800 | 740 | JDX710 | 6.3 | 140 |
| Φ2.6×13 | 20.6 | ≤25 | 28~31 | 80 | YR1000-8/1180 | 1000 | 740 | JDX800 | 6.3 | 151 |
| Φ3.0×9 | 19.3 | ≤25 | 35~40(C) | 80~83 | YR1000-8/1180 | 1000 | 740 | MBY800 | 7.1 | 137 |
| Φ3×11 | 18.92 | ≤25 | 44~47(C) | 95~100 | YR1250-8/1430 | 1250 | 740 | JDX900 | 7.1 | 159 |
| Φ3×12 | 18.92 | ≤25 | 48~52(C) | 103 | YR1250-8/1430 | 1250 | 740 | JDX900 | 7.1 | 164 |
| Φ3×13 | 18.92 | ≤25 | 39~45(C) | 110~116 | YR1400-8/1430 | 1400 | 740 | JDX900 | 7.1 | 183 |
| Φ3.2×11 | 18.3 | ≤25 | 45~48(C) | 110~112 | YR1400-8/1430 | 1400 | 740 | JDX900 | 7.1 | 195.5 |
| Φ3.2×13 | 18.7 | ≤25 | 45~50(O) | 125 | YR1600-8/1430 | 1600 | 740 | JDX1000 | 7.15 | 213 |
| Φ3.4×11 | 18 | ≤25 | 45~55(C) | 115 | YR1600-8/1430 | 1600 | 740 | JDX1000 | 7.15 | 201 |
| Φ3.5×13 Central drive | 17 | ≤25 | 50~55 | 150 | YR2000-8/1730 | 2000 | 740 | JS130-A-F1 | 223 | |
| Φ3.5×13 Edge drive | 17.5 | ≤25 | 50~60 | 150 | YR2000-8/1730 | 2000 | 740 | JDX1000 | 6.3 | 240.5 |
| Φ3.8×13 Bearing | 16.3 | ≤25 | 65~70 | 185 | YR2500-8/1730 | 2500 | 740 | JS130-C-F1 | 240 | |
| Φ3.8×13 Sliding shoe | 16.3 | ≤25 | 65~70 | 185 | YR2500-8/1730 | 2500 | 740 | JS130-C-F1 | 220 | |
| Φ4×13 | 16.3 | ≤25 | 78~80 | 191 | YRKK900 | 2800 | 745 | JS140-A | 220 | |
| Φ4.2×11 Bearing | 15.6 | ≤25 | 120~140 | 190 | YR2800-8/1730 | 2800 | 740 | JS140-A-F1D | 245 | |
| Φ4.2×13 Bearing | 15.6 | ≤25 | 140~155 | 225 | YRKK1000-8 | 3350 | 740 | JS150-A | 260 | |
| Φ4.2×13 Central shoe | 15.6 | ≤25 | 140~155 | 225 | YRKK1000-8 | 3550 | 740 | JS150-A | 280 | |
| Φ4.2×13 Sliding shoe | 15.6 | ≤25 | 140~155 | 225 | YRKK1000-8 | 3550 | 740 | JS150-B | 260 | |
| Φ4.6×13.5 Welding shoe | 14.5 | ≤25 | 140 | 280 | YRKK1000-6 | 4500 | 995 | 365 | ||
| Φ4.6×14 | 14.5 | ≤25 | 145 | 285 | YR1000-6 | 4500 | 995 | 372 | ||
| Φ5.0×15 | 14 | ≤25 | 160~165 | 350 | YRKK1000-8 | 6000 | 740 | 420 |
