Applicablecalcium carbonate,feldspar,carbon blocks, gypsum,calcite, marble, dolomite, Barite,kaolin etc.
-
Input size≤20mm
-
Output size150-3000 mesh(0.1mm-0.005mm)

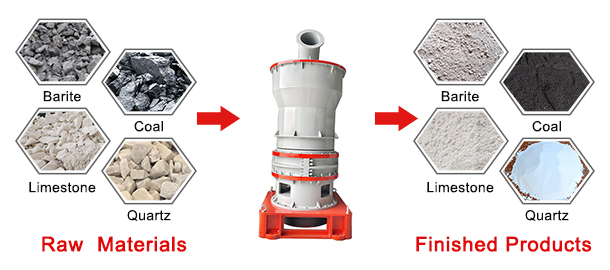

Applicable Material
Working Principle

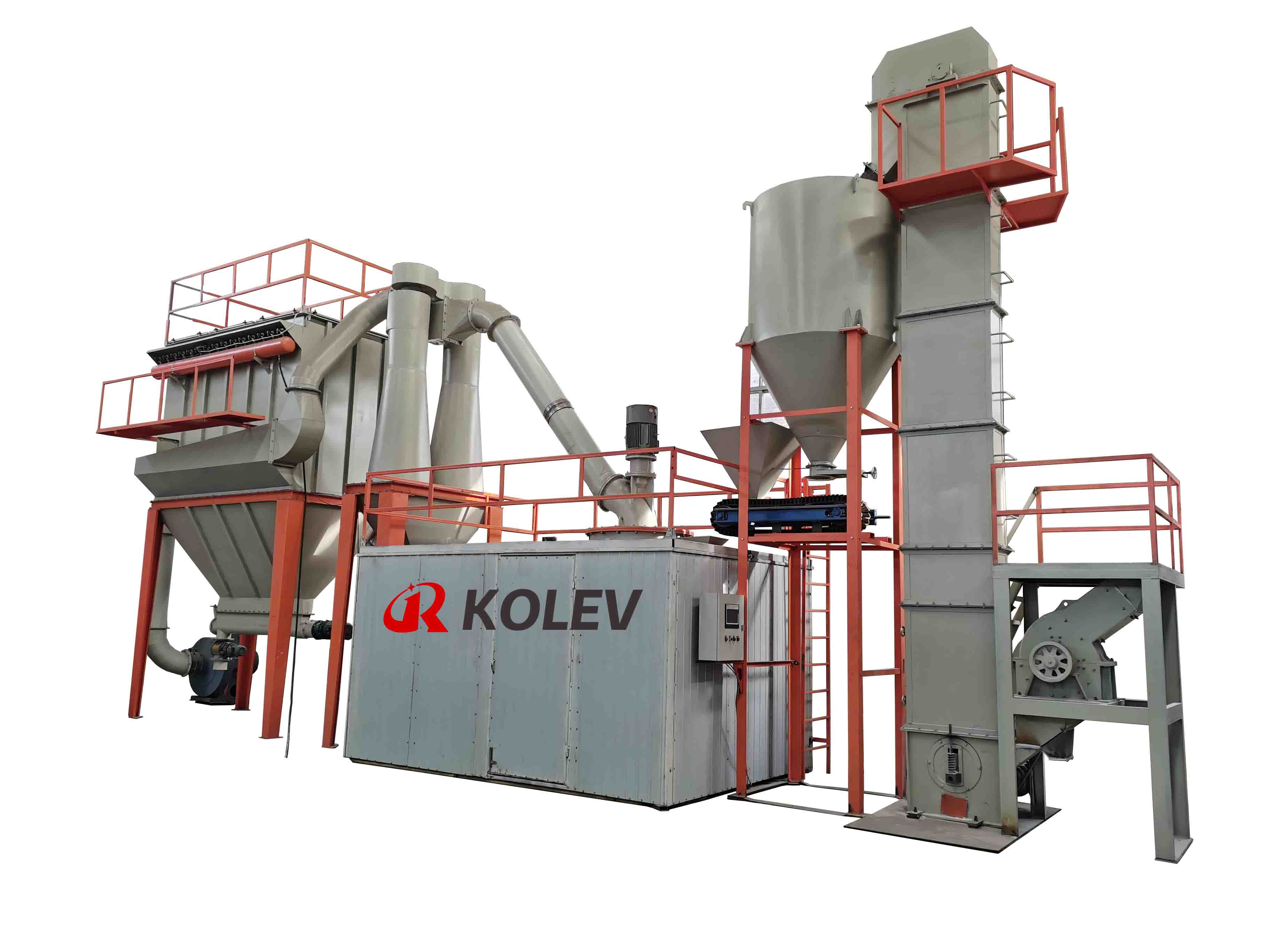

- Large pieces of material are broken into small particles by the crusher and sent to the storage bin by the elevator. Then the materials are evenly sent to the middle of the upper turntable through the belt conveyor weighing scale.
2.The motor of the micro-grinding machine drives the spindle and the turntable of each layer to rotate through the reducer, and the turntable drives dozens of ring rollers to roll and rotate in the raceway of the grinding ring through the pin.
3.The material is scattered to the periphery of the circle under the action of centrifugal force, and falls into the raceway of the grinding ring by the ring roller punching, rolling, grinding and crushing. The suction effect of the high pressure centrifugal fan will draw the external air into the machine, and the coarse powder after the third layer of grinding will be brought into the separator.
4.The snail flow generated by the rotating worm gear in the separator makes the coarse particle material fall back to the re-grinding, and the fine powder enters the cyclone powder collector with the air flow and is discharged by the discharge valve at its lower part, which is the finished product.
5.The air flow with a small amount of fine dust is purified by the pulse dust collector and discharged by the fan and silencer.
Technical Parameter
| Model | KLM800 | KLM800B | KLM1000 | KLM100B | KLM1250 | KLM1250B | |
| mean diameter （mm） |
800 | 800 | 1000 | 1000 | 1250 | 1250 | |
| Number of loops （ pcs ） |
3 | 3 | 4 | 4 | 4 | 4 | |
| Feed size （mm） |
≤10 | ≤10 | ≤15 | ≤15 | ≤20 | ≤20 | |
| Size range of finished product （mesh） |
150-3000 (0.1mm-0.005mm) |
150-3000 (0.1mm-0.005mm) |
150-3000 (0.1mm-0.005mm) |
150-3000 (0.1mm-0.005mm) |
150-3000 (0.1mm-0.005mm) |
150-3000 (0.1mm-0.005mm) |
|
| Finished product output （t/h） |
0.5-6 | 0.5-6 | 1.2-10.5 | 1.2-11.5 | 2.5-20.5 | 2.5-20 | |
| boundary dimension （L*W*H)（mm） |
8605*4139x6050 | 10454*3393*6626 | 14507*3633*7562 | 14362*4200*7562 | 19261*4406*8591 | 25067*5414*9007 | |
| main motor power （KW） |
75 | 75 | 132 | 132 | 185 | 185 | |
| Power of separator （KW） |
15 | 5.5*3 | 22 | 5.5*3 | 37 | 5.5*4 | |
